Product Details
A strong welded mesh system having anti climb & anti cut features along with high visibility making it ideal for medium and high security.

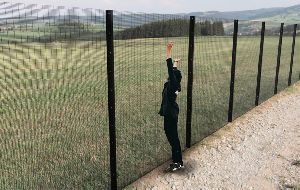

Difficult to Climb
The Mesh size of 76.2 X 12.7 mm makes it difficult to grip thus prohibiting any chances of climbing the fence.

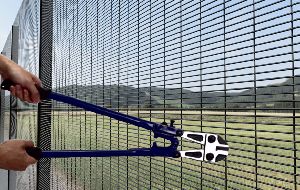

Difficult to Cut
The dense mesh inhibits ingress of commonly available cutting tools like pliers which makes the fence difficult to cut
High Visibility
The fence although being so dense gives clear visibility so that it is CCTV friendly exposing the intruders
Long Life
Made with Galvanized steel and then Powder coated providing the fence with superior corrosion & dust resistance and aesthetic finish

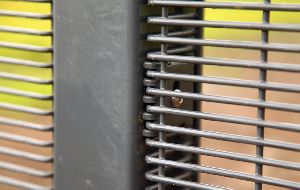

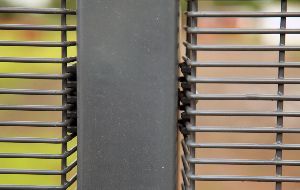

Modular
Use of special fixtures makes the system modular and easy to install thus eliminating need for welding or fabrication during installation.
Strong
Panels are manufactured with high weld strength imparting increased stability under impact.
Variant
Garrison fence is designed keeping the defence forces in mind. It has bigger and stronger circular hollow section as poles. It has a three panel design instead of one which aids installation on poles as well as easy transportation. Specially designed Y-arms support high deterrent large diameter concertina coils to dissuade pole vaulting and climbing over from top.
Applications
Technical Specification
Height (mm) |
Width (mm) |
Mesh Size (mm) |
Wire Diameter (mm) | Coating | |
Vertical | Horizontal | ||||
2100 | 2971 | 76.2 x 12.7 | 3 mm | 3 mm | PPC/TPC |
2400 | 2971 | 76.2 x 12.7 | 3 mm | 3 mm | PPC/TPC |
1800 | 2971 | 76.2 x 12.7 | 3 mm | 3 mm | PPC/TPC |
3000 | 2515 | 76.2 x 12.7 | 3 mm | 3 mm | PPC/TPC |
