Product Details

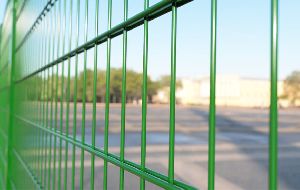

A strong demarcation fence with a unique twin wire welded mesh structure, ideal for applications like road median fencing, protecting commercial & residential buildings.
Thickest Wires
The fence boasts the thickest wires at 8 mm for twin horizontal wires and 6 mm for vertical wires. The use of thicker wire makes it more difficult to cut and break and hence is very strong.
Twin wire
The Innovation in welding an 8 mm wire on either side of the vertical 6 mm wire has resulted in making the fence very rigid and strong. It eliminates the need to have a V-bend because of this and makes it possible to have a flat installation without worrying about waviness.
Long Life
Panels are made with pre galvanised wires and then powder coated providing the system with superior corrosion resistance features.\
Application Of Twin Wire Fence
- Demarcation
- Perimeter Security

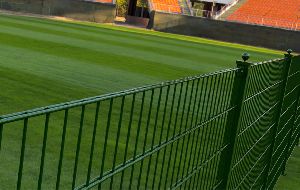

- Sports
Panel Specification
| Height | Width | Mesh Size | Wire Diameter | Coating | |
| Vertical | Horizontal | ||||
| 1200 | 2015 mm | 65x200 | 6 mm | 8 mm | PPC/TPC |
| 1886 | 2015 mm | 65x200 | 6 mm | 8 mm | PPC/TPC |
Post Specification
| Cross Section (with thickness) | No. of Clamps required | Height (above GL) | Coating |
| 60x60x1.5 mm | 4 x M10 x 120 | 130x130x8.0mm | PPC/TPC |
| 60x60x1.5 mm | 4 x M10 x 120 | 130x130x8.0mm | PPC/TPC |
