Twitter| Business Type | Manufacturer, Exporter, Supplier |
| Material | Galvanized |
| Surface Treatment | Polished |
| Application | Home, Industrial |
| Click to view more | |
Preferred Buyer From
| Location | India ( Madhya Pradesh only) & All other countries |
Product Details
Certification
ISO-9001:2008
Length
1-20 Feet
Thickness
0.5-1mm
Country of Origin
India

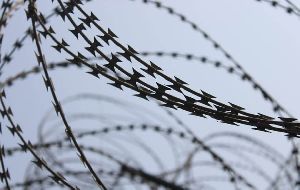

Tried and Tested wall top or fence top deterrent made of Razorblade tape in coil shape. They are available in different coil diameters and blade profiles to suit different site conditions.
Variable Loop Sizes
The loop sizes can be adjusted depending upon the space available and the level of security needed.
Multiple Blade Profiles
The various blade profiles can be perfect to mitigate different types of intrusion threats.
Long Life
Coils are made of heavy galvanized Steel and optionally in Stainless steel which provides desired life.
Application
- Demarcation
- Perimeter Security
Technical Specification 01
| Parameter | Specifications |
| Diameter range | 450mm - 1000mm |
| Core wire diameter & Tolerance | 2.50mm |
| Blade Thickness & Tolerance | 0.40mm to 0.60mm |
| Blade Material | Galvanized Sheet, SS430, SS304, SS316 |
| Tensile Strength | 1250 - 1350 & 1350 - 1550N/mm2 |
| Wire Material | Galvanized Wire, SS204Cu, SS304, SS316 |
Technical Specification 02
| Parameter | SBBT | MBBT | LBBT | TBBT | FBBT |
| Blade Profile | Short Blade | Medium Balde | Long Blade | Tear Blade | Fish Hook Blade |
| Blade Length | 10mm | 22mm | 65mm | 30mm | 66mm |
| Core wire diameter | 2.50mm | 2.50mm | 2.50mm | 2.50mm | 2.50mm |
| Distance between Barb | 25mm | 35mm | 100mm | 50mm | 101mm |
| No. of loop per coil | 56 | 56 | 56 | 56 | 56 |
Garph
