Twitter| Business Type | Manufacturer, Exporter, Supplier |
| Diameter Range | 450mm - 1000mm |
| Core wire diameter & Tolerance | 2.50mm |
| Blade Thickness & Tolerance | 0.40mm to 0.60mm |
| Click to view more | |
Preferred Buyer From
| Location | India ( Madhya Pradesh only) & All other countries |
Product Details
Blade Material
Galvanized Sheet, SS430, SS304, SS316
Tensile Strength
1250 - 1350 & 1350 - 1550N/mm2
Wire Material
Galvanized Wire, SS204Cu, SS304, SS316

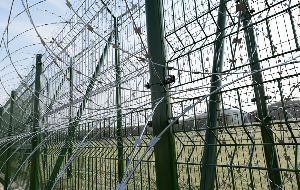

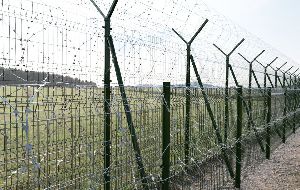

It is a significant upgrade over the existing line of Control barbed wire picket border fence after decades. It has two layers and is designed to withstand heavy snow pressure and be installed on steep gradients.
More Intrusion Time
High-Security fence has more thickness as compared to traditional fence owing to the dual layers and concertina coils thus providing ultimate perimeter protection and increased intrusion time. It also makes pole vaulting impossible.
Long Life
The fence components are powder coated to provide superior corrosion resistance thereby imparting longevity.
Technical Specification
| Parameter | SBBT | MBBT | LBBT | TBBT | FBBT |
| Blade Profile | Short Blade | Medium Balde | Long Blade | Tear Blade | Fish Hook Blade |
| Blade Length | 10mm | 22mm | 65mm | 30mm | 66mm |
| Core wire diameter | 2.50mm | 2.50mm | 2.50mm | 2.50mm | 2.50mm |
| Distance between Barb | 25mm | 35mm | 100mm | 50mm | 101mm |
| No. of loop per coil | 56 | 56 | 56 | 56 | 56 |
Garph
